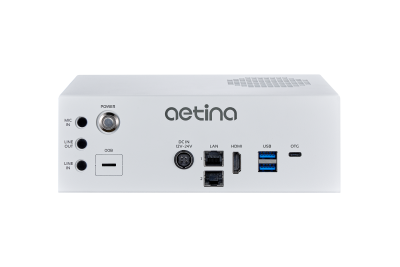

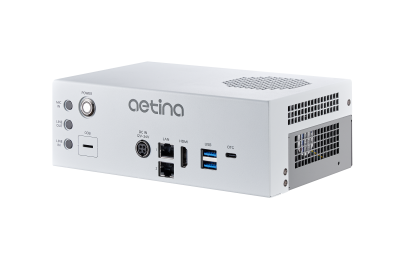

AIE-KO22/32 | AIE-KN32/42
• 支持NVIDIA Jetson Orin™ NX 和 Orin Nano™ (支援Super Mode) 模块
• 寬輸入電壓設計：12至24VDC
• 完整M.2B-Key、E-Key、M-Key各一组 (内置128GB)
• 2 x RJ-45 GbE Ports
• 作業溫度-25°C ~ +70°C
 |
 |
产品介绍
| ● 体积最小的Jetson模组高达80倍的AI性能可实现AI推论 |
| NVIDIA Jetson Orin™ NX模块提供高达100 TOPS的性能，是NVIDIA Jetson AGX Xavier™模块的3倍多，NVIDIA Jetson Xavier™ NX模块的5倍左右；NVIDIA Jetson Orin Nano™提供高达40 TOPS的性能，是NVIDIA Jetson Nano™模块的80倍。换言之，NVIDIA Jetson Orin NX和Orin Nano模块为体积最小的Jetson模块建立了新的主流和入门级边缘AI标准。 |
| ● 丰富M.2接口 内外存储扩展兼备 |
| AIB-KO22/32和AIB-KN32/42是扩展能力高的边缘运算平台，提供1组M.2 B-Key用于LTE/5G、1组M.2 E-Key用于Wifi/BT、1组M.2 M-Key用于存储。为避免边缘运算的数据存储空间不足，AIB-KO22/32和AIB-KN32/42更支持外部M.2 2242 NVMe的高速传输与扩展。 |
| ● 宽输入电压和操作温度 适用于各种嵌入式应用 |
|
为满足各种嵌入式应用，尤其是具有挑战性的环境，如智慧工厂、智慧城市和智慧交通等，AIB-KO22/32和AIB-KN32/42支持操作温度范围从-25°C到80°C，宽输入电源范围则为12到24VDC。 |
* AIB-KO22/32和AIB-KN32/42是初步產品，因此規格如有更改，恕不另行通知。
Supercharge with NVIDIA Super Mode
| Orin Nano 4GB | Orin Nano 4GB (Super) |
Orin Nano 8GB | Orin Nano 8GB (Super) |
Orin NX 8GB | Orin NX 8GB (Super) |
Orin NX 16GB | Orin NX 16GB (Super) |
|
|---|---|---|---|---|---|---|---|---|
| GPU Cores | 512 CUDA Cores 16 Tensor Cores |
512 CUDA Cores 16 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
1024 CUDA Cores 32 Tensor Cores |
| GPU Max Frequency | 625 MHz | 1020 MHz | 625 MHz | 1020 MHz | 765 MHz | 1173 MHz | 918 MHz | 1173 MHz |
| Peak AI Performance INT8 | 20 TOPS | 34 TOPS | 40 TOPS | 67 TOPS | 70 TOPS | 117 TOPS | 100 TOPS | 157 TOPS |
| GPU Performance (S/D) | 20/10 TOPs | 34/17 TOPs | 40/20 TOPs | 67/33 TOPs | 50/25 TOPs | 77/38 TOPs | 60/30 TOPs | 77/38 TOPs |
| CPU | 6X A78 1.5 GHz |
6X A78 1.7 GHz |
6X A78 1.5 GHz |
6X A78 1.7 GHz |
6X A78 2.0 GHz |
6X A78 2.0 GHz |
8X A78 2.0 GHz |
8X A78 2.0 GHz |
| SPEC int rate | 106 | 118 | 106 | 118 | 130 | 167 | 167 | 167 |
| DLA Performance (S/D) | N/A | N/A | N/A | N/A | 20/10 TOPs | 40/20 TOPs | 40/20 TOPs | 80/40 TOPs |
| DRAM BW | 34 GB/s | 51 GB/s | 68 GB/s | 102 GB/s | 102 GB/s | 102 GB/s | 102 GB/s | 102 GB/s |
| Mechanical | 70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
70 x 45 mm 260 pins |
| Module Power | 7W | 10W | 7W | 10W | 25W | 7W | 15W | 10W | 15W | 25W | 10W | 15W | 20W | 10W | 15W | 25W | 40W | 10W | 15W | 25W | 10W | 15W | 25W | 40W |
Specifications
| Model Number | AIE-KO22 | AIE-KO32 | AIE-KN32 | AIE-KN42 | ||||
| Module Compatibility | NVIDIA Jetson Orin Nano 4GB | NVIDIA Jetson Orin Nano 4GB (Super) | NVIDIA Jetson Orin Nano 8GB | NVIDIA Jetson Orin Nano 8GB (Super) | NVIDIA Jetson Orin NX 8GB | NVIDIA Jetson Orin NX 16GB | ||
| AI Performance | 20 TOPS | 34 TOPS | 40 TOPS | 67 TOPS | 70 TOPS | 100 TOPS | ||
| GPU | 512 Core NVIDIA Ampere, with 16 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | |||||
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 | 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v8.2 64-bit 2MB L2 + 4MB L3 | |||||
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 4GB 64-bit LPDDR5 51 GB/s | 8GB 128-bit LPDDR5 68 GB/s | 8GB 128-bit LPDDR5 68 GB/s | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s | ||
| Storage | 1 x M.2 M-Key 2242 (NVMe 128GB built-in) | |||||||
| Display | 1 x HDMI 2.0 Type A | |||||||
| Audio | Line-out / Line-in / Mic (optional with daughter board) | |||||||
| RTC | With super capacitor, battery (optional) | |||||||
| LAN | 2 x RJ-45 GbE Ports | |||||||
| USB | 2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared) 1 x OTG Type-C |
|||||||

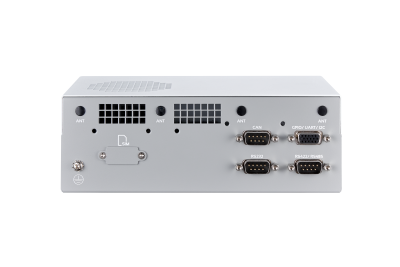

| I/O Interfaces | 5 x GPIO, 1 x UART, 1 x I2C, 1 x RS-232, 1 x RS-422/485 (2-in-1), 1 x CAN (isolation; support CAN FD), 1 x OOB (optional), 1 x microSIM Card Slot |
|||||||
| Expansion | 1 x M.2 B-Key 3042/3052 (LTE/4G/5G) 1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2242 (NVMe 128GB built-in) |
|||||||

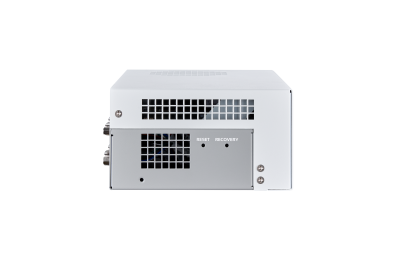

| MISC. Function | 1 x Power Button / Recovery Button / Reset Button | |||||||
| Power Input/Connector | DC-in 12-24VDC / 4-Pin DC Jack Power Connector | |||||||
| Power Consumption | Idle: 6.4 W Full Loading: 30.05* W |
Idle: 6.4 W Full Loading: 40* W |
Idle: 6.4 W Full Loading: 30.05* W |
Idle: 6.4 W Full Loading: 40* W |
Idle: 6.4 W Full Loading: 39.55* W |
|||
| Dimension (WxDxH) | 196.5 x 124 x 68 mm (7.73 x 4.88 x 2.67") | |||||||
| Mounting | Wall Mount (optional) / Din Rail (optional) | |||||||
| Net Weight | 1.102 kg (2 lb ) | |||||||
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |||||||
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |||||||
| Temperature | Operating Temp.: -25°C ~ +70°C (-13°F ~ +158°F) with 0.5 m/s air flow Storage Temp.: -40°C ~ +85°C (-40°F ~ +185°F) *With full CPU+GPU stressing: System non-throttling at 60C with 40W TDP mode (MAXN) |
|||||||
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |||||||
| Software Support | Linux (Support Jetpack 5.0 above) | |||||||
| Certification | CE / FCC Class A / UKCA | |||||||
产品规格
订购信息
| Model Number | Description |
|---|---|
|
AIE-KO22-1-A1 |
Orin Nano 4GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C to +70°C |
|
AIE-KO32-1-A1 |
Orin Nano 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C to +70°C |
|
AIE-KN32-1-A1 |
Orin NX 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C to +70°C |
|
AIE-KN42-1-A1 |
Orin NX 16GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C to +70°C |
|
AIE-KO22-1-S1
(Super Mode)
|
Orin Nano 4GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +70°C |
|
AIE-KO32-1-S1
(Super Mode)
|
Orin Nano 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +70°C |
